frangisole

Façades

Sunshades

The sunshade structure is simple and attractive, designed to provide excellent conditions in every area, and is fully adaptable to any architecture.

It allows light to enter and helps to improve the comfort inside the rooms. The sunshade comes in three varieties: fixed ogive, adjustable ogive, and “Z” profile. In the fixed version, you may choose between ogives and “Z” profiles.

The sunshade blades in the adjustable version can be manually adjusted, or motorized, and can be integrated with a controller for optimal setting and effectiveness at all times of day and in all weather situations.

The sunshade may be customized to fit any environment thanks to the extensive selection of Ponzio surface finishes, both anodized and powder coated.

SUNSHADES

frangisole

OGIVA FISSA

montaggio orientabili

OGIVA ORIENTABILE

zeta

ZETA

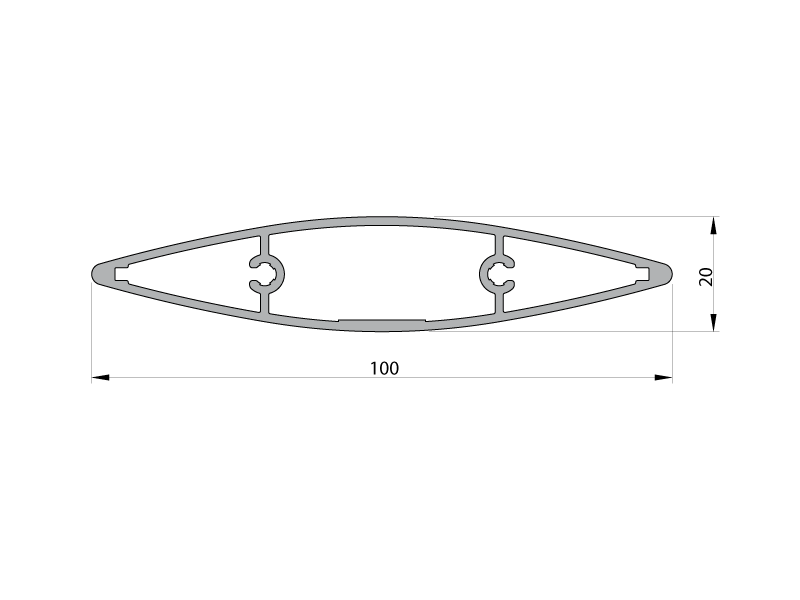

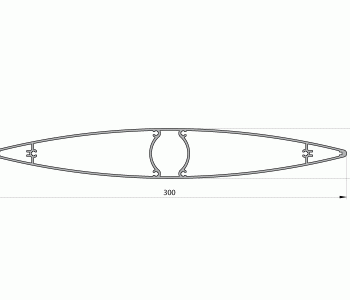

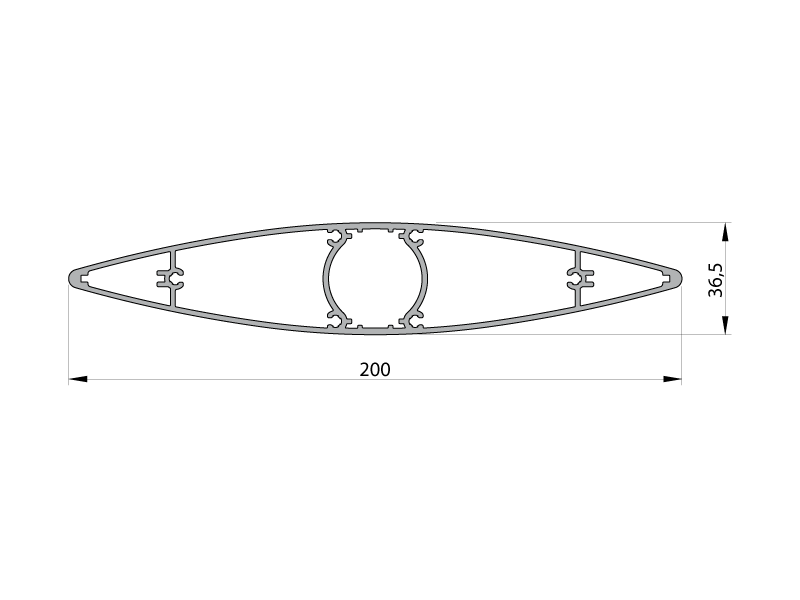

FIXED OGIVE

Lamelle

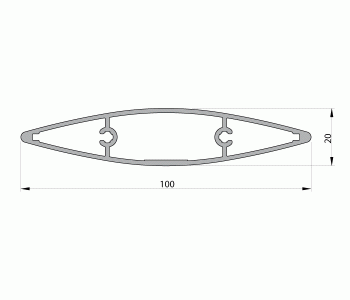

100

100

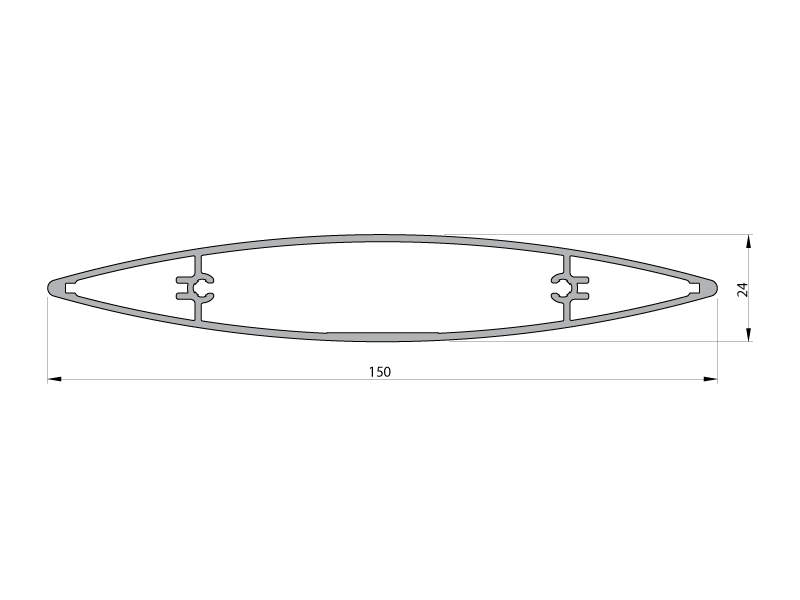

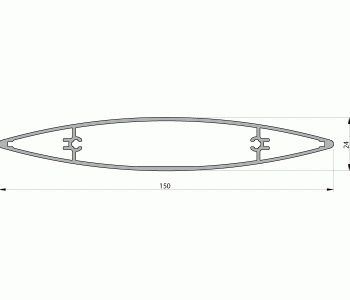

150

150

200

200

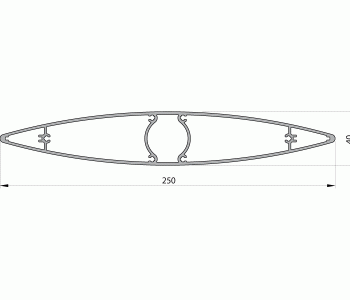

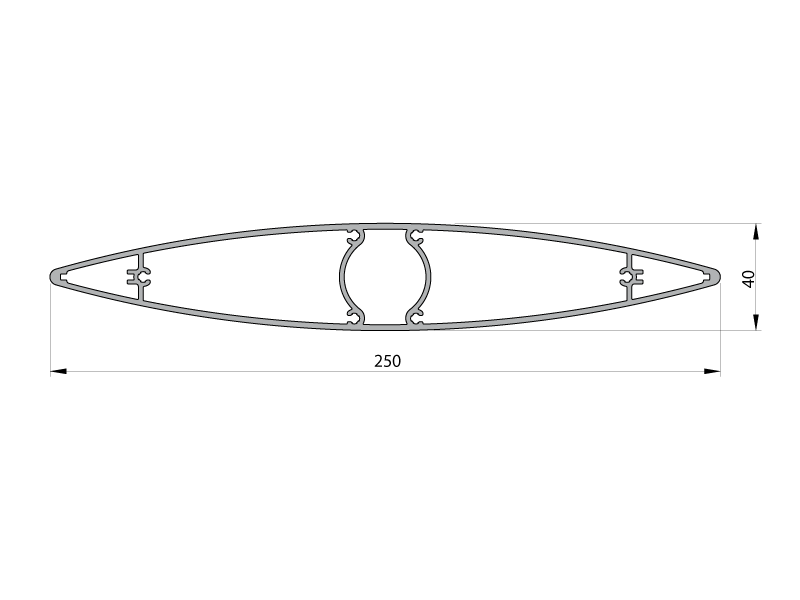

250

250

300

300

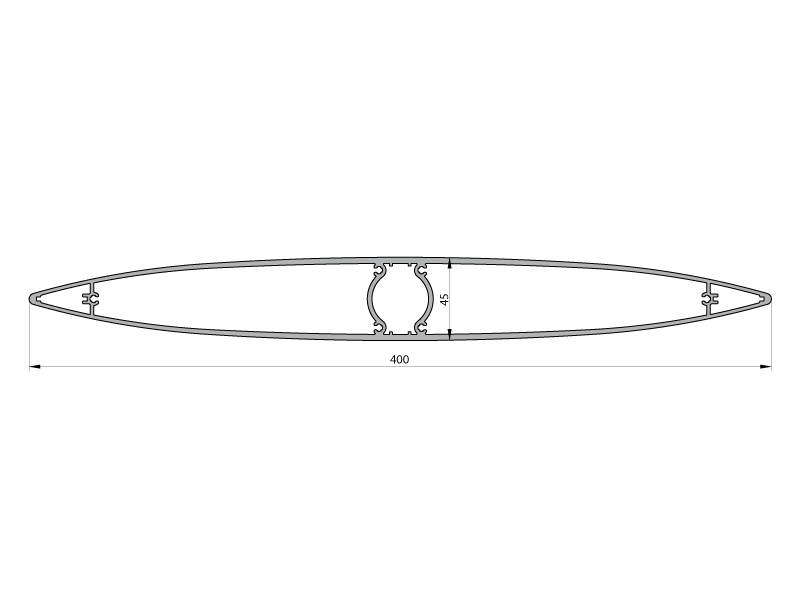

400

400

FIXING GRADATION

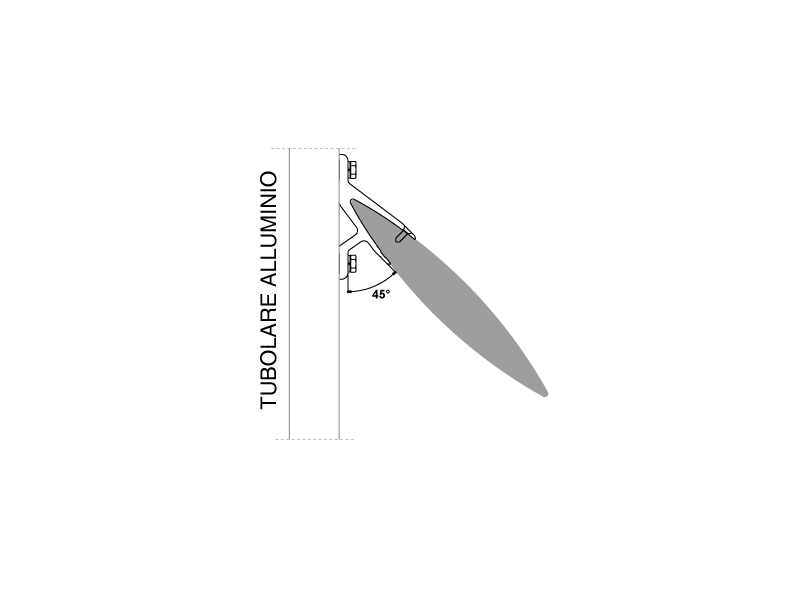

45gradi

45°

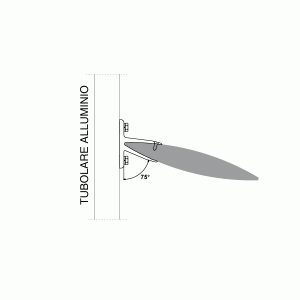

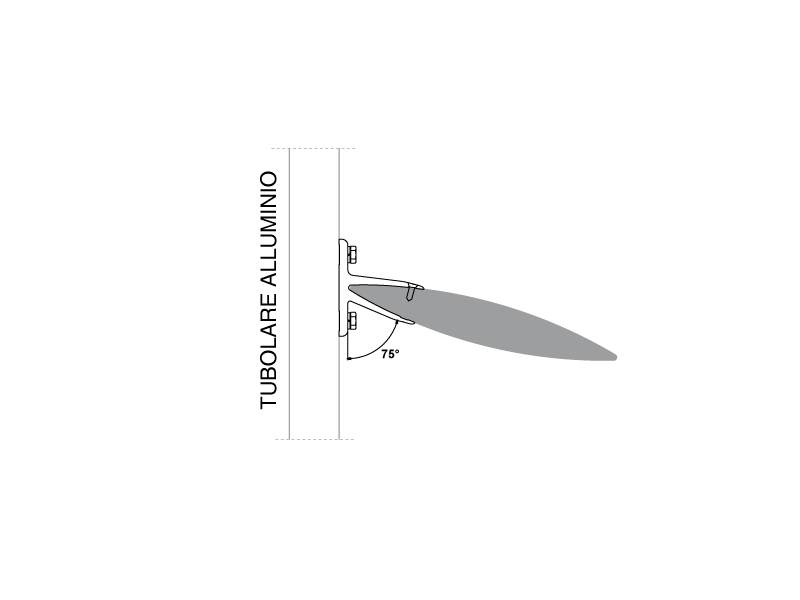

75gradi

75°

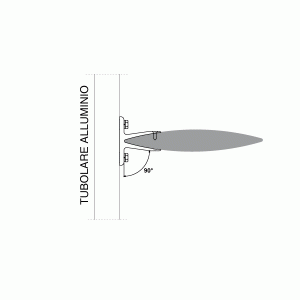

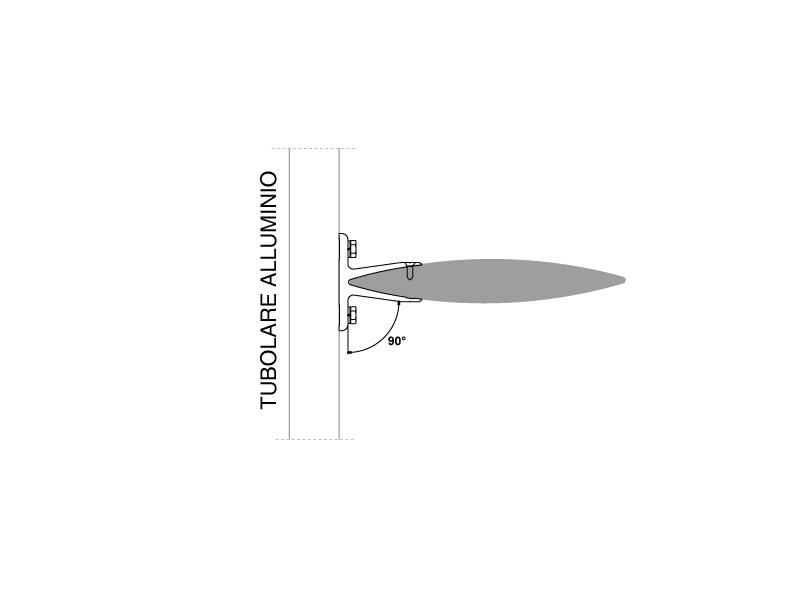

90gradi

90°

ADJUSTABLE OGIVE

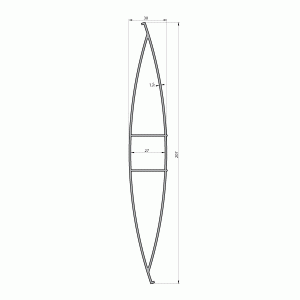

pala orientabile

Lamella 207

disegno pala orientabile

Montaggio

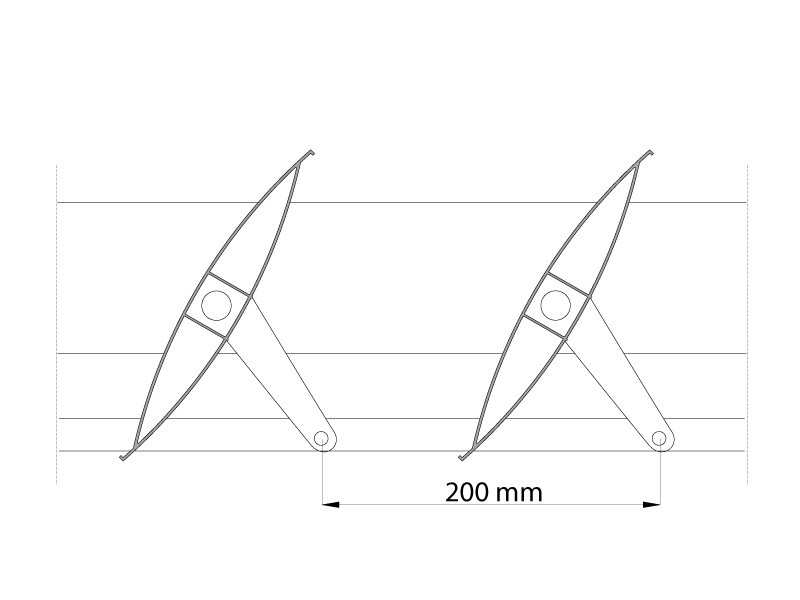

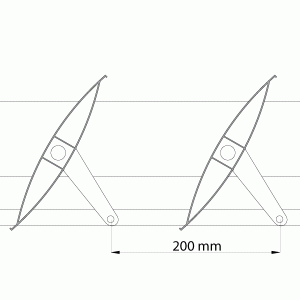

interasse

Interasse

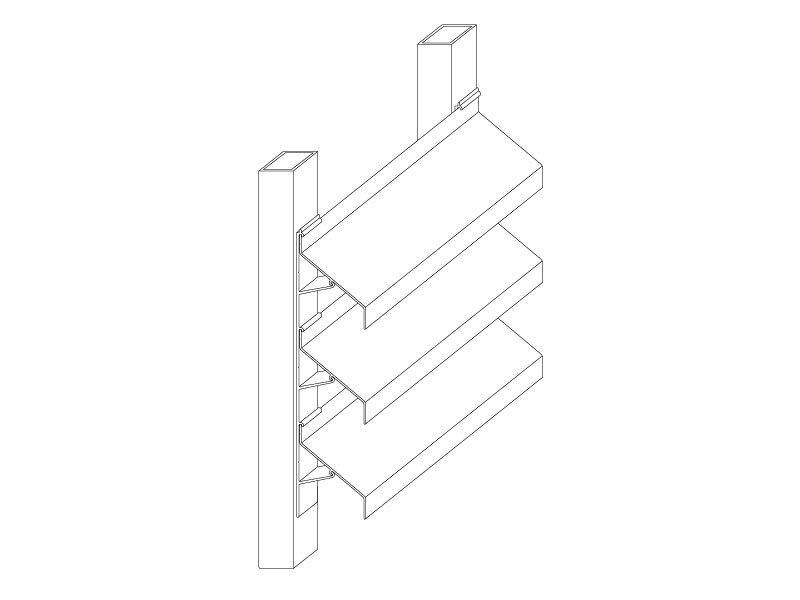

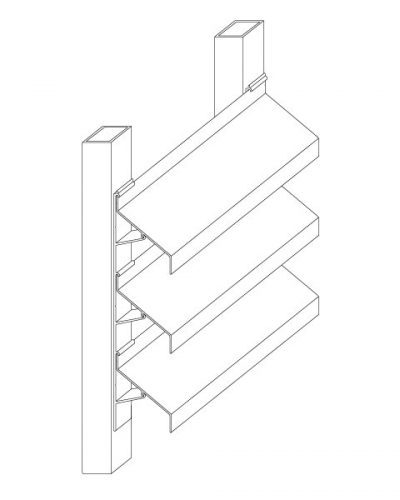

``Z`` PROFILE

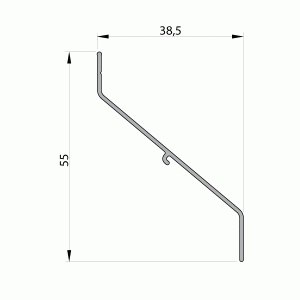

zeta1

38.5

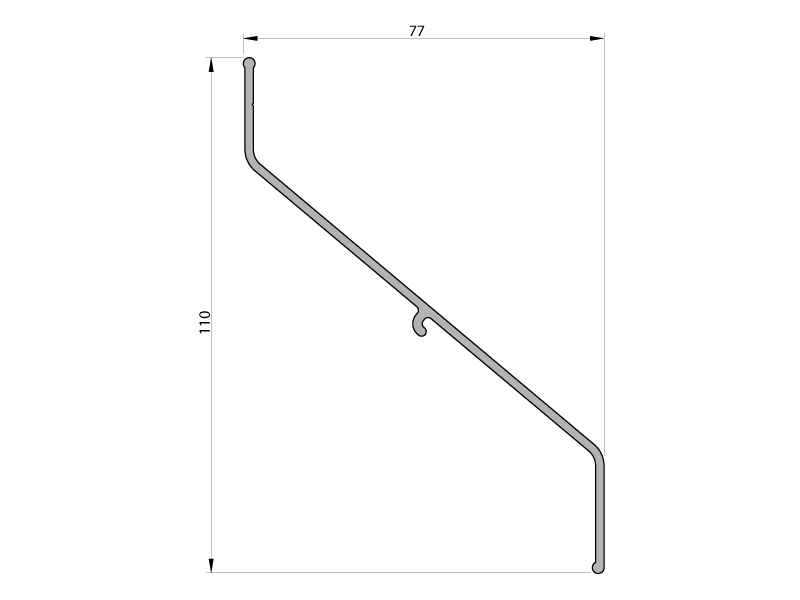

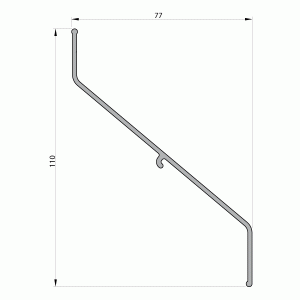

zeta2

110

Surface Finishes
