TECHNICAL DATASHEET

SERIE: WS 75THI

• PROFILES: Aluminium alloy extruded 6060 (UNI 9006/1)
• TOLERANCES OF DIMENSIONS AND THICKNESS: UNI EN 12020-02.
• TYPES OF AIR-WATER SEALS: open joint / overlap.
• THERMAL CUT: with two continuous polyamide rods reinforced with glass fiber.
• GLASS APPLICATIONS: with squared or rounded glass beads, with cuts at 45 or 90 degrees.
• GLASS CHAMBER: varying depending on the glazing beads used.

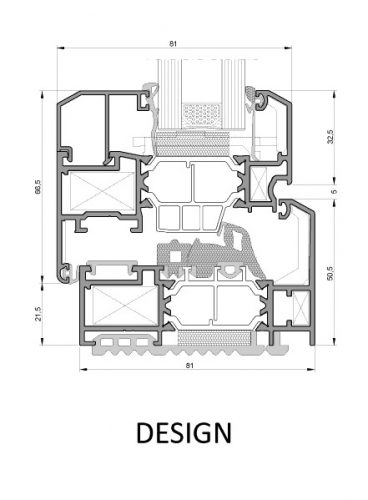

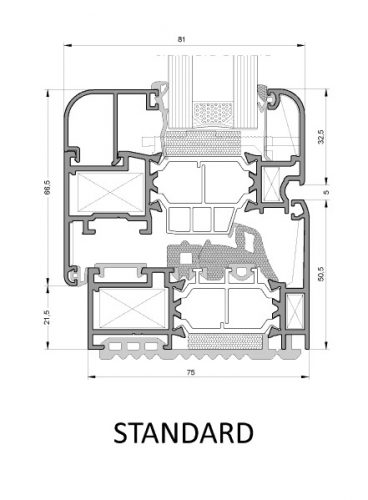

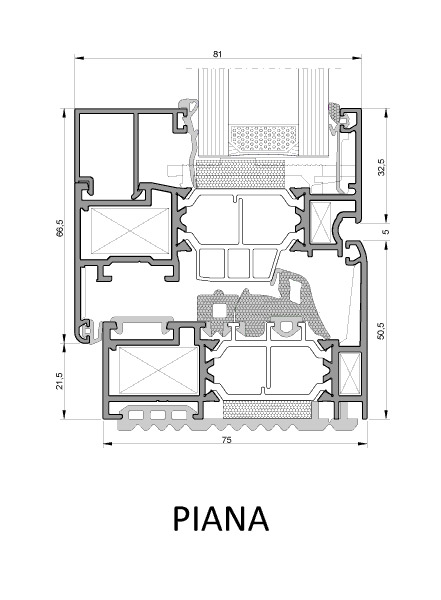

MAIN SYSTEM SIZE

• Frame sect. : 75/89 mm.
• Wing sect. : 81/82,5 mm.
• Frame/wing gap: 5 mm.
• Center node gap: 5 mm.
• Glass rabbet flap: 21/23 mm.
• Wall flap: 22/70 mm.

APPLICATION: The system may be used to create hinged windows type side hung, wasistas, tilt-and-turn, tilt-and-slide, monoblocs, pivoting, projecting, awning, hopper, balcony doors, doors, with one or more wings.

PERFORMANCE DATASHEET

• THERMAL TRANSMITTANCE: Uw = 0.86 W / m2K with glass Ug = 0.6 (warm edge)
• THERMAL TRANSMITTANCE: Uw = 1.20 W / m2K with glass Ug = 1.0 (warm edge)
• AIR PERMEABILITY: CLASS 4
• WATER TIGHTNESS: E1500
• WIND LOAD RESISTANCE: C5
• SOUND PROOFING: 41-46 dB
