WS 45
Ponzio WS is the joinery Ponzio’s alluminium system with European chamber; it allows the creation of shutter windows and doors.

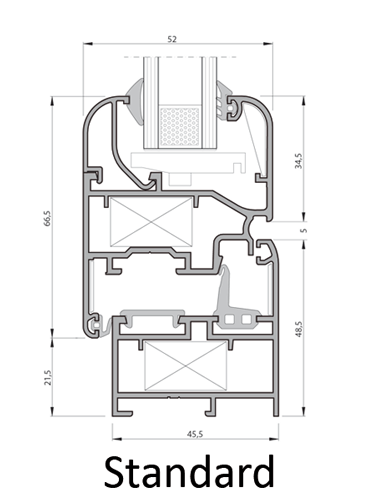

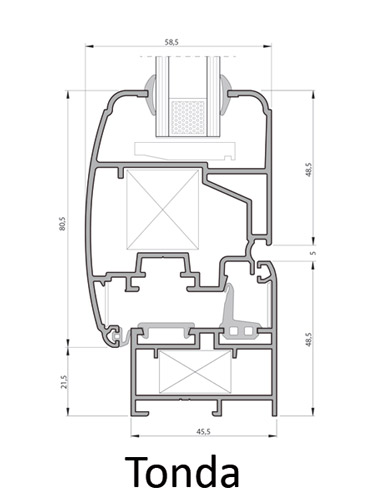

AESTETHIC LINES
TECHNICAL DATASHEET
- PROFILES: Aluminium alloy extruded 6060 (UNI 9006/1).
- TOLERANCES OF DIMENSIONS AND THICKNESS: UNI EN 12020-02.
- TYPES OF AIR-WATER SEALS: open joint.
- GLASS APPLICATIONS: with glass beads cut at 45 degrees or 90 degrees.
- GLASS CHAMBER: varying depending on the glazing beads used.
MAIN SYSTEM SIZE:
- Frame sect. : 52/60 mm.
- Wing sect. : 52/61 mm.
- Frame/wing gap: 5 mm.
- Center node gap: 3 mm.
- Glass rabbet flap: 22 mm.
- Wall flap: 22mm
APPLICATION: The system may be used to create hinged windows type side hung, wasistas, tilt-and-turn, balcony doors, with one or more wings.
PERFORMANCE DATASHEET
- AIR PERMEABILITY: CLASS 4
- WATER TIGHTNESS: E1050
- WIND LOAD RESISTANCE: C4
- SOUND PROOFING: 38 dB
Aesthetic lines
