SL 1600TT

Sliding

SL1600 TT

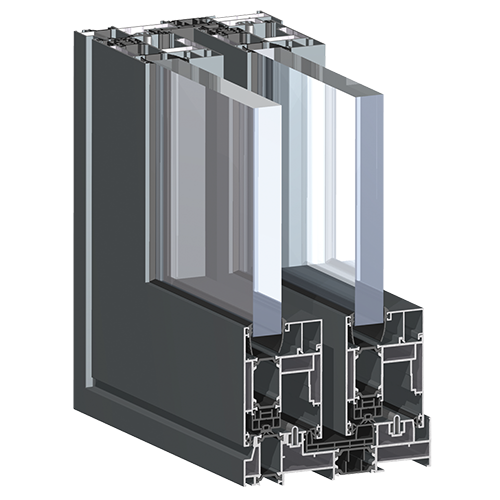

SL1600TT is the system for sliding doors type ‘lift & slide’ and with glazing beads; great look, high relaibility and performances, available also with reduced frame impact solution (only 50mm width of central knots) for wide glazed area and brightness of environments

TECHNICAL DATASHEET

  • PROFILES Aluminium alloy extruded 6060 (UNI 9006/1) .
  • TOLERANCES OF DIMENSIONS AND THICKNESS: UNI EN 12020-02 .
  • TYPES OF AIR-WATER SEALS: brush and gaskets .
  • THERMAL BREAK: with two continuous polyamide rods reinforced with glass fiber.
  • FRAME ASSEMBLY: both 45° and 90° frame assembly available; 45° sash assembly.
  • GLASS APPLICATIONS: with glazing beads.
  • GLASS CHAMBER: varying depending on glazing beads.

MAIN SYSTEM SIZE:

  • Frame sect.: 160 mm (2 rails).
  • Frame sect.: 247 mm (3 rails) .
  • Wing sect.: 67 mm.
  • Central knot width: 30 mm

APPLICATION: The system may be used to create sliding doors and windows with flexible configurations: 1, 2 or 3 rails, 1, 2 or more sashes, pocket, corner.

PERFORMANCE DATASHEET

  • THERMAL TRANSMITTANCE: Uw = 1.70 W / m2K with glass Ug = 1.0 (warm edge)
  • TRASMITTANZA TERMICA: Uw = 1,70 W/m2K con vetro Ug = 1,0 (intercalare caldo)
  • AIR PERMEABILITY: CLASS 4
  • WATER TIGHTNESS: E1350
  • WIND LOAD RESISTANCE: C4
  • SOUND PROOFING: up to 42 dB

Surface Finishes
