NT 65 TT Panic Door SAC 1

Doors

Newtec is the system for Ponzio’s alluminium joinery with R chamber ; it permits to realize different tipology of shutter windows and doors.

TYPOLOGIES

DIMENSION

Table of measures to comply with

MODULES	WIDTH (mm)	HEIGHT (mm)	DOOR	OPENING (gradi)	GLASS
1	950	2200	1	180°	44.1be-15-33.1 c.c.
1	1100	2200	1	90°	44.1be-15-33.1 c.c.
2	1300	2200	1	180°	44.1be-15-33.1 c.c.
2	1500	2200	1	90°	33.1be-15-33.1 c.c.
2	1700	2200	2	90°	44.1be-15-33.1 c.c.
3	1900	2200	2	180°	44.1be-15-33.1 c.c.
3	2200	2200	2	90°	44.1be-15-33.1 c.c.

GLASS

The standard glass used is 44.1/15/33.1 Low-E double glazing with Argon with Ug=1.1 W 1.70/m2K with hot runner therefore the value of the complete window frame is around Uw = 1.8 W 1.70/m2K.

STANDARD GLASS

TRIPLE GLASS

LAMINATED GLASS

TECHNICAL DATASHEET

PROFILES: Aluminium alloy extruded 6060. (UNI 9006/1).
TOLERANCES OF DIMENSIONS AND THICKNESS: UNI EN 12020-02.
TYPES OF AIR-WATER SEALS: open joint and overlap.
THERMAL CUT: carried out with two continuous polyamide rods with reinforced fiber glass.
GLASS APPLICATIONS: with normal or rounded glass holder with cuts at 45 or 90 degrees.
GLASS CHAMBER: variable according to the profiles used.

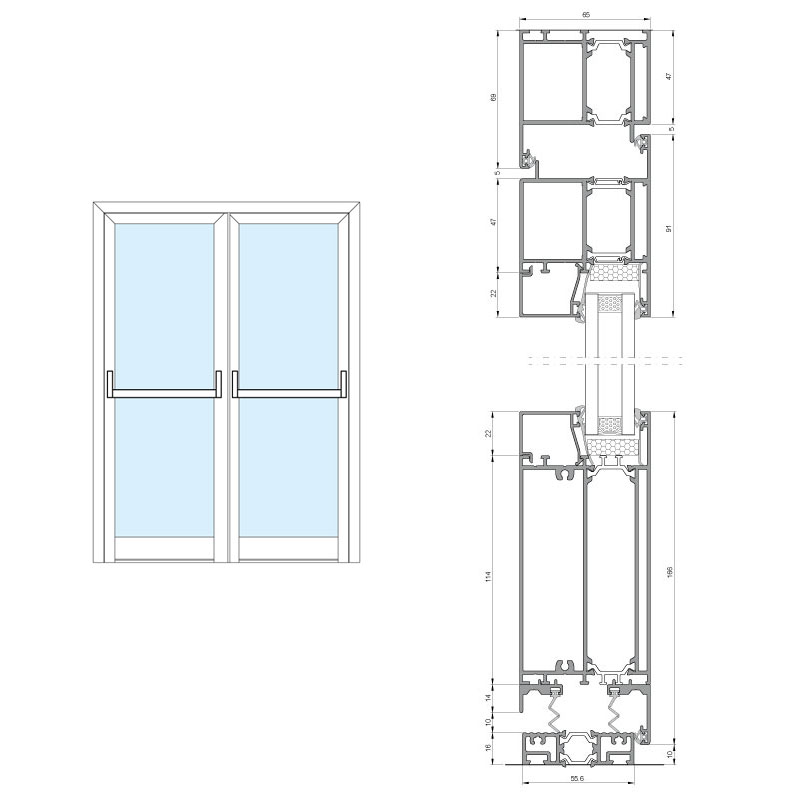

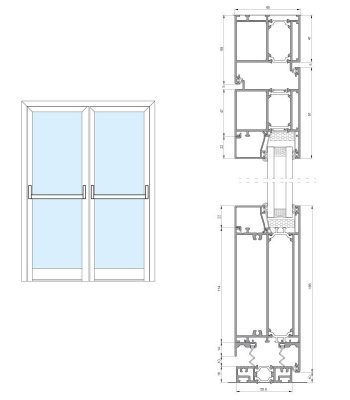

MAIN SYSTEM SIZE:

Frame sect. : 65/80,5 mm.
Wing sect. : 65/74 mm.
Frame/wing gap: 5 mm.
Center node gap: 5 mm.
Glass rabbet flap: 22 mm.
Wall flap: 22 mm

APPLICATION: the system is suitable for installation along escape routes (ODIESODO).

PERFORMANCE DATASHEET

THERMAL TRANSMITTANCE: Uw = 1,70 W/m2K with glass Ug = 1,0 (warm)
SOUNDPROOFING: 40 dB
AIR PERMEABILITY: CLASS 3
WATER TIGHTNESS: 3A *1A
WIND LOAD RESISTANCE: C2

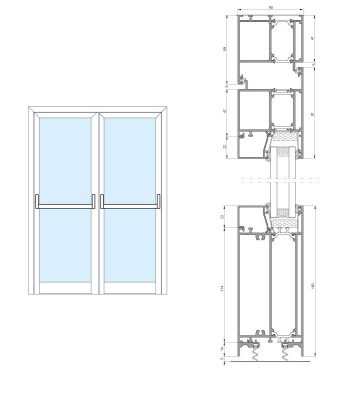

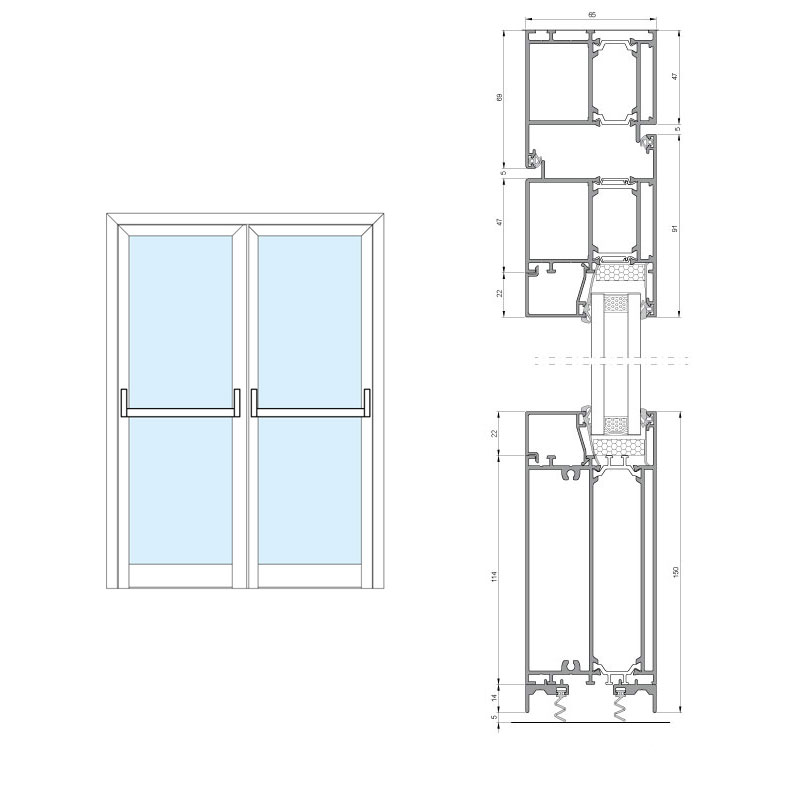

SOUND PROOFING: 40 dB* npd (Type without threshold)
