TECHNICAL DATASHEET

• PROFILES: Aluminium alloy extruded 6060. (UNI 9006/1).
• TOLERANCES OF DIMENSIONS AND THICKNESS: UNI EN 12020-02.
• TYPES OF AIR-WATER SEALS: open joint or overlap.
• THERMAL CUT: realized with two continuos astine of polyamide strengthened with glass.
• GLASS APPLICATIONS: with normal or rounded glass holder with cuts at 45 or 90 degrees.
• GLASS CHAMBER: variable according to the profiles used.

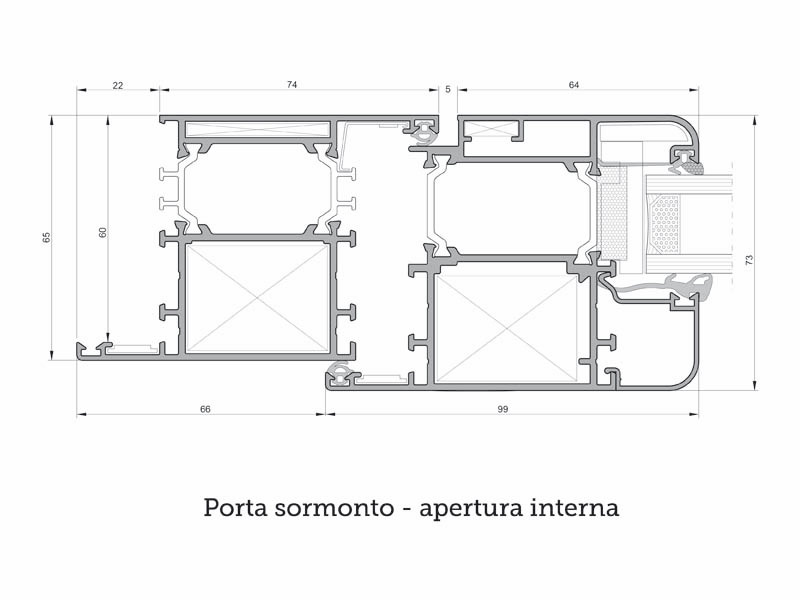

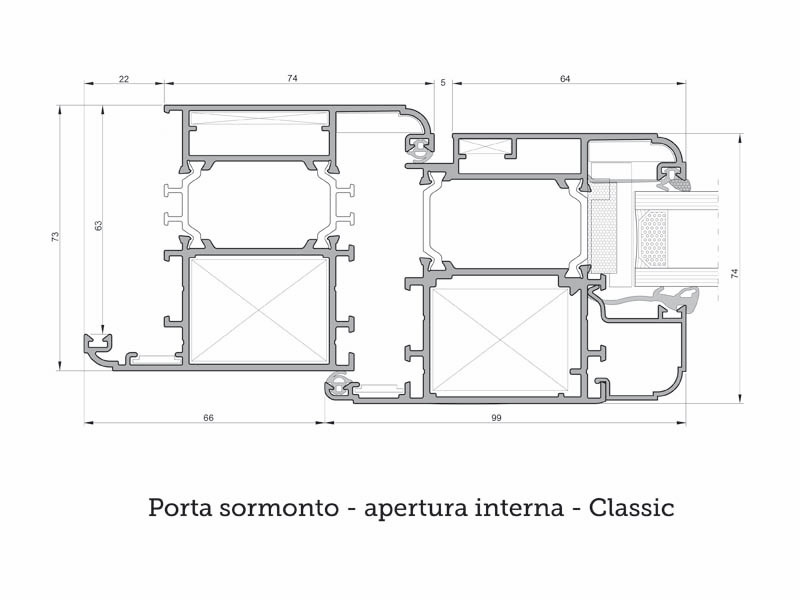

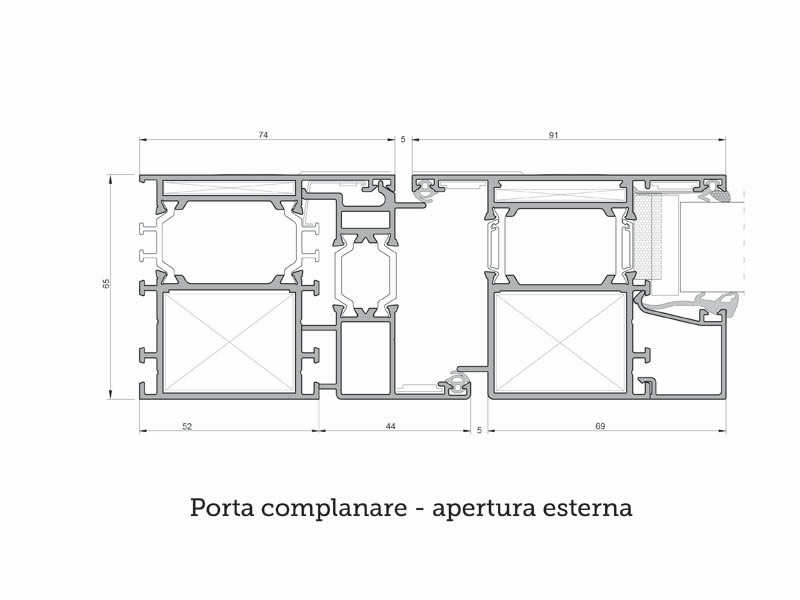

MAIN SYSTEM SIZE:

• Frame sect. : 65/80,5 mm.
• Wing sect. : 65/74 mm.
• Frame/wing gap: 5 mm.
• Center node gap: 5 mm.
• Glass rabbet flap: 22 mm.
• Wall flap: 22 mm

APPLICATION: The system allows the realization of: windows, vasistas,tilt and turn, monobloc frames, door-window and doors with one or more wings.

PERFORMANCE DATASHEET

• THERMAL TRANSMITTANCE: Uw = 1.07 W / m2K with glass Ug = 0,7 (warm edge)
• AIR PERMEABILITY: CLASS 3
• WATER TIGHTNESS: 3A
• WIND LOAD RESISTANCE: C2
• SOUND PROOFING: 40 dB
