• PROFILES: Aluminium alloy extruded 6060. (UNI 9006/1).
• TOLERANCES OF DIMENSIONS AND THICKNESS: UNI EN 12020-02.
• TYPES OF AIR-WATER SEALS: open joint and overlap.
• THERMAL CUT: carried out with two continuous polyamide rods with reinforced fiber glass.
• GLASS APPLICATIONS: with normal or rounded glass holder with cuts at 45 or 90 degrees.
• GLASS CHAMBER: variable according to the profiles used.

MAIN SYSTEM SIZE:

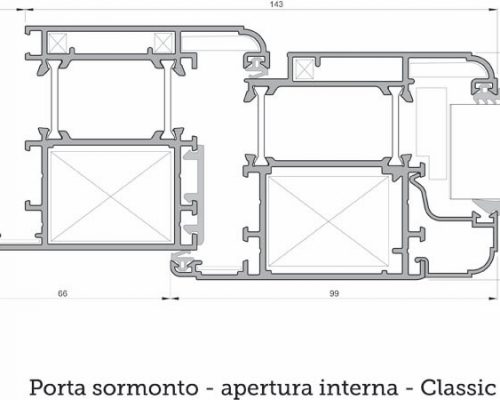

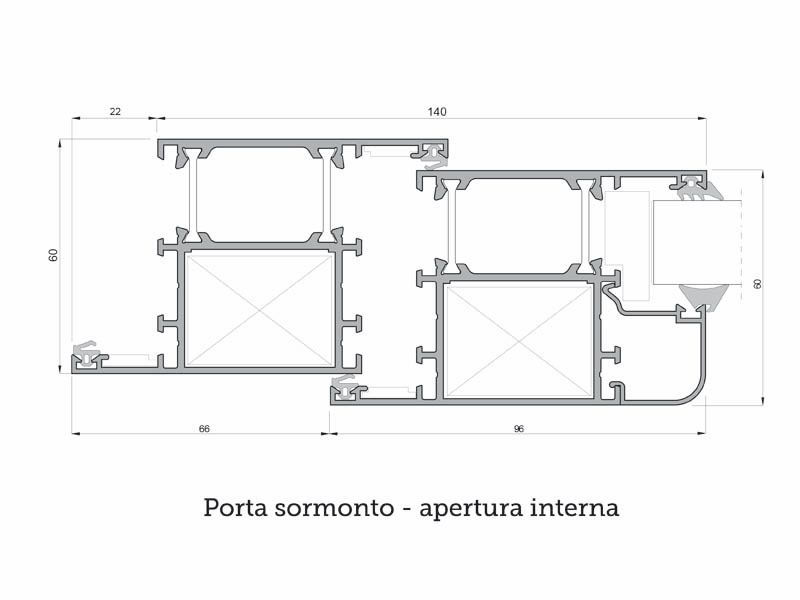

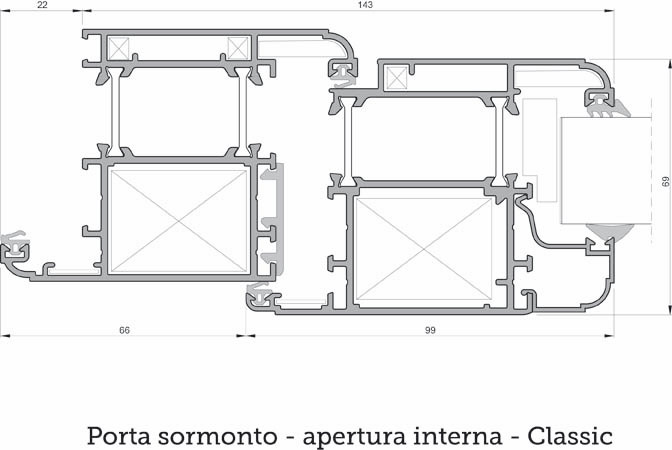

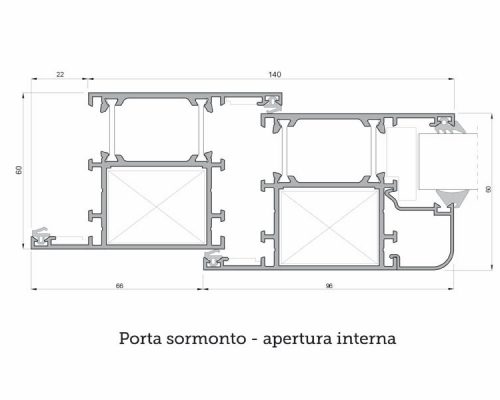

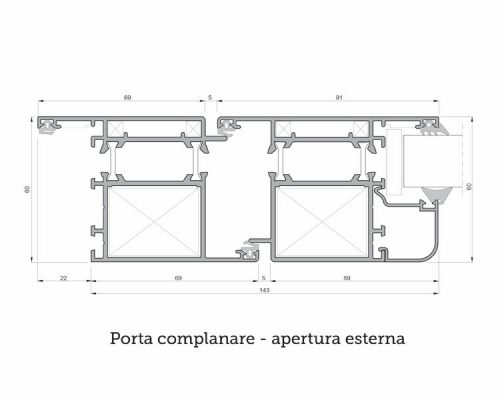

• Frame sect. : 60/68 mm.
• Wing sect. : 60/68 mm.
• Frame/wing gap: 5 mm.
• Center node gap: 5 mm.
• Glass rabbet flap: 22 mm.
• Wall flap: 22 mm

APPLICATION: The system allows the realization of: windows, frenchwindows, bottom-hinged, pivoting, top-hinged, hopper wing and monoblock frames, doors with one or more wings.

PERFORMANCE DATASHEET

• THERMAL TRANSMITTANCE: Uw = 2,00 W/m2K with glass Ug = 0,7 (warm)
• SOUNDPROOFING: 40 dB
