TECHNICAL DATASHEET

• PROFILES: Aluminium alloy extruded 6060. (UNI 9006/1).
• TOLERANCES OF DIMENSIONS AND THICKNESS: UNI EN 12020-02.
• TYPES OF AIR-WATER SEALS: open joint and overlap.
• THERMAL CUT: carried out with two continuous polyamide rods with reinforced fiber glass.
• GLASS APPLICATIONS: with normal or rounded glass holder with cuts at 45 or 90 degreesd.
• GLASS CHAMBER: varying depending on the glazing beads used.

MAIN SYSTEM SIZE:

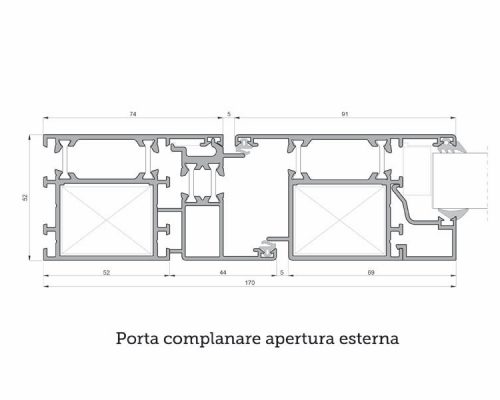

• Frame sect. : 52 or 60 mm.
• Wing sect. : 52 or 60 mm.
• Frame/wing gap: 5 mm.
• Center node gap: 5 mm.
• Glass rabbet flap: 2 mm.
• Wall flap: 22 mm

APPLICATION: The system allows the realization of: windows, french windows, bottom-hinged, pivoting, top-hinged, hopper wing and monoblock frames, doors with one or more wings.
