TECHNICAL DATASHEET

• PROFILES: Aluminium alloy extruded 6060 (UNI 9006/1).
• TOLERANCES OF DIMENSIONS AND THICKNESS: UNI EN 12020-02
• TYPES OF AIR-WATER SEALS: open joint.
• THERMAL CUT: with two continuous polyamide rods reinforced with glass fiber.
• GLASS APPLICATIONS: with squared glass beads cut at 90 degrees.
• GLASS CHAMBER: varying depending on the glazing beads used.

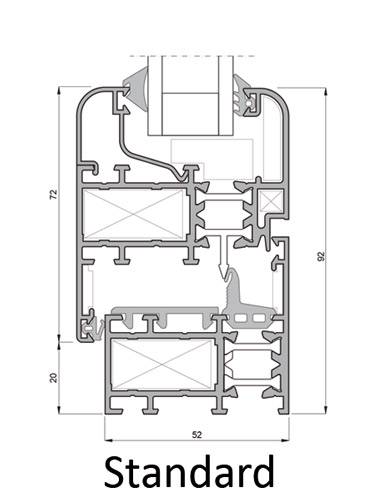

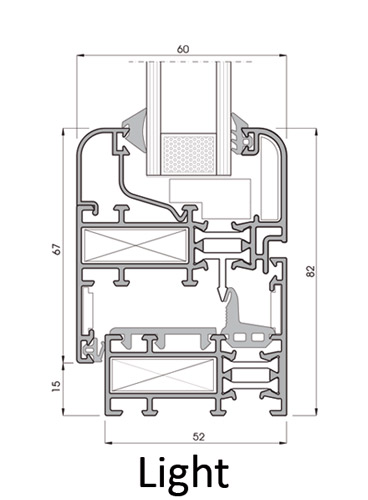

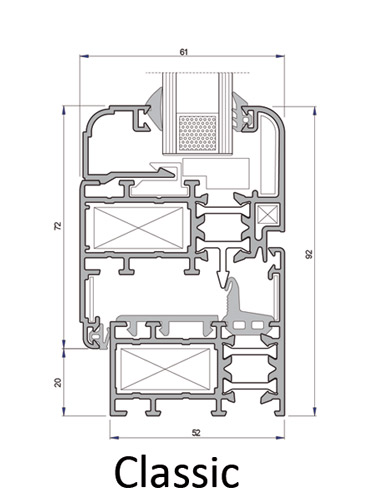

MAIN SYSTEM SIZE:

• Frame sect. : 52/60 mm.
• Wing sect. : 52/60 mm.
• Frame/wing gap: 5 mm.
• Glass rabbet flap: 22 mm.
• Wall flap: 22 mm.

APPLICATION: the system allows the realization of: windows, french windows, bottom-hinged, pivoting, top-hinged, hopper wing and monoblock frames, doors with one or more wings.

PERFORMANCE DATASHEET

• THERMAL TRANSMITTANCE: Uw = 1,54 W/m²K with glass (warm edge)
• THERMAL TRANSMITTANCE: Uw = 1,78 W/m²K with glass (warm edge)
• AIR PERMEABILITY: CLASS 4
• WATER TIGHTNESS: E750
• WIND LOAD RESISTANCE: C4
• SOUND PROOFING: 37-44 dB
