TECHNICAL DATASHEET

• PROFILES: Aluminium alloy extruded 6060 (UNI 9006/1)
• TOLERANCES OF DIMENSIONS AND THICKNESS: UNI EN 12020-02.
• TYPES OF AIR-WATER SEALS: overlap.
• GLASS APPLICATIONS: with normal or rounded glass holder with cuts at 45 or 90 degrees.
• GLASS CHAMBER: varying depending on the glazing beads used.

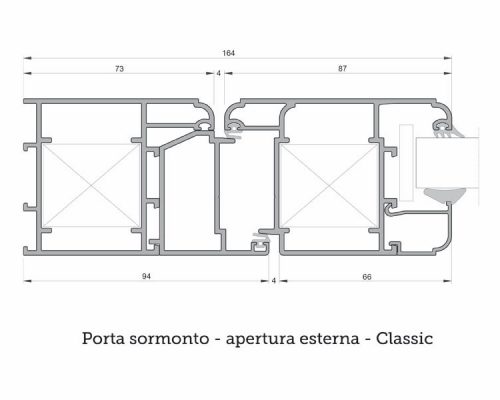

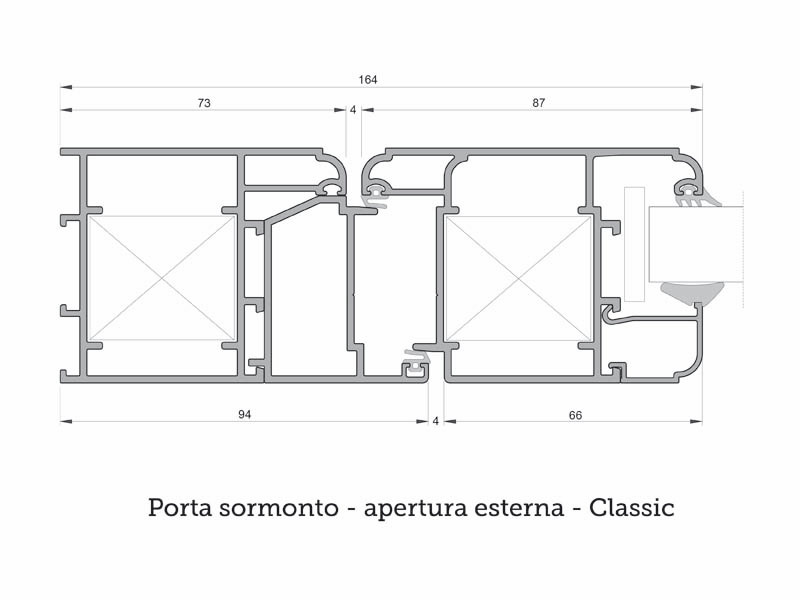

MAIN SYSTEM SIZE

• Frame sect. : 60 mm.
• Wing sect. : 60 mm.
• Frame/wing gap: 4 mm.
• Center node gap: 4 mm.
• Glass rabbet flap: 21 mm.
• Wall flap: 22 mm.

APPLICATION: The system allows the realization of: doors with one or more wings.
