TECHNICAL DATASHEET

• PROFILES: Aluminium alloy extruded 6060. (UNI 9006/1).
• TOLERANCES OF DIMENSIONS AND THICKNESS: UNI EN 12020-02.
• WOOD: Ramin, oak or cherry-tree duramen wood.
• TYPES OF AIR-WATER SEALS: open joint or overlap.
• GLASS APPLICATIONS: with glasskeepers to click and to screw without visible screws.
• GLASS CHAMBER: Variable according to the glasskeepers used.

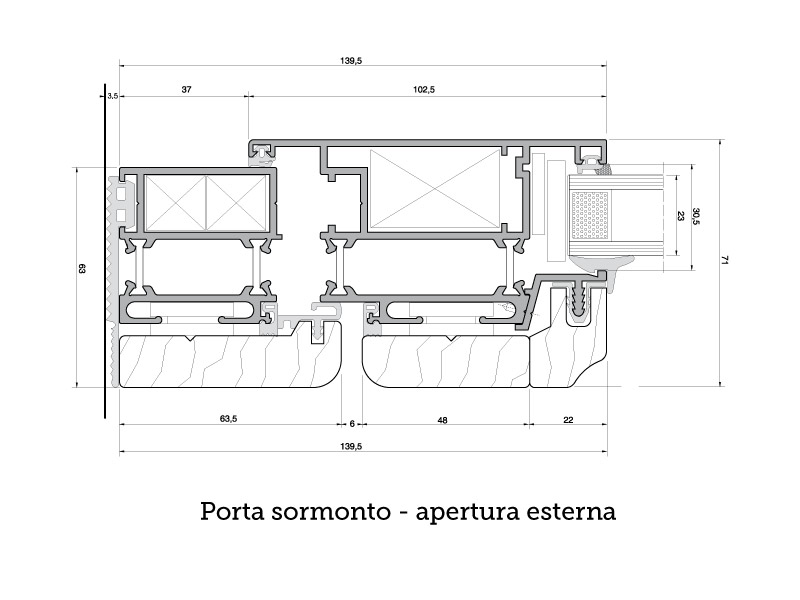

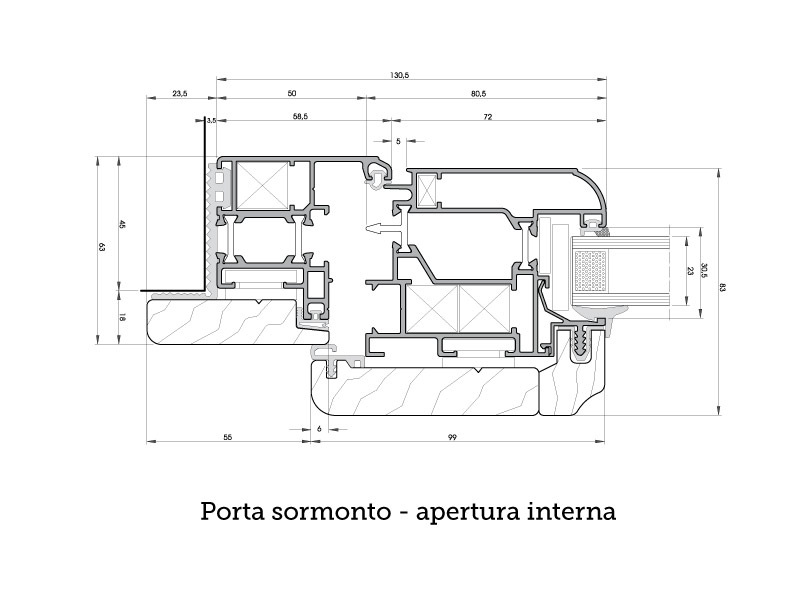

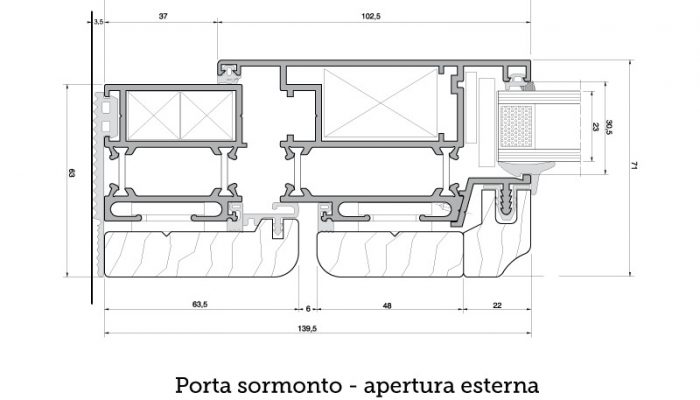

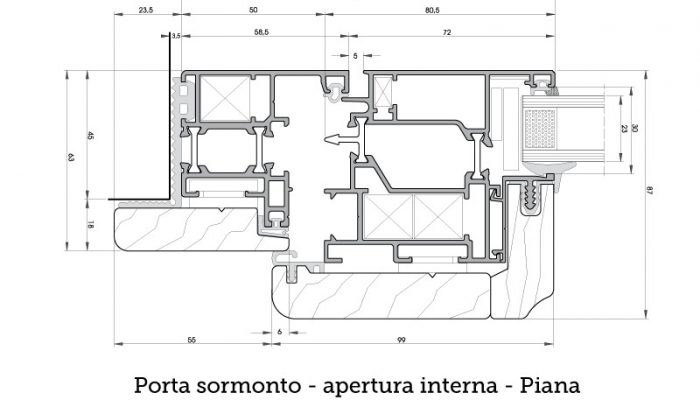

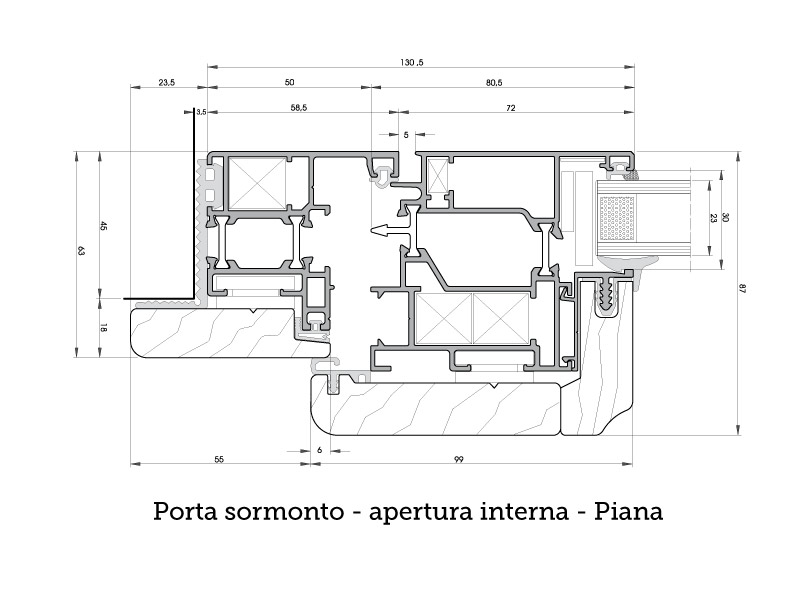

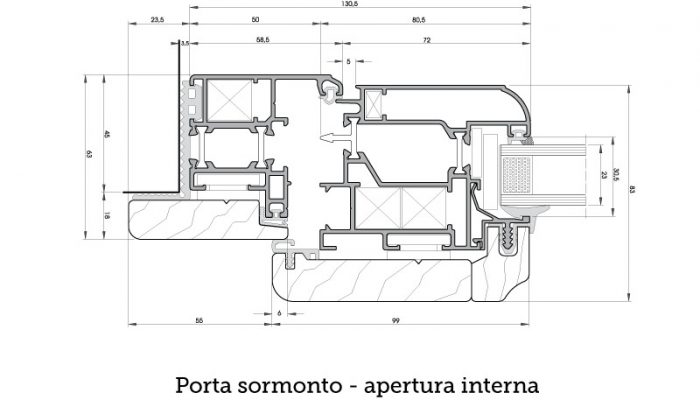

MAIN SYSTEM SIZE:

• Frame sect. : 63 mm.
• Wing sect. : 83/87 mm.
• Frame/wing gap: 5 mm.
• Center node gap: 5 mm.
• Glass rabbet flap: 19/22 mm.
• Wall flap: 23,5 mm

APPLICATION: The system allows the realization of: windows, transom-window, tilt and turn window, door-window and doors with one or more wings.

PERFORMANCE DATASHEET

• THERMAL TRANSMITTANCE: Uw = 1.40 W / m2K with glass Ug = 0,7 (warm edge)
• THERMAL TRANSMITTANCE: Uw = 1.60 W / m2K with glass Ug = 1.0 (warm edge)
• AIR PERMEABILITY: CLASS 4
• WATER TIGHTNESS: E1350
• WIND LOAD RESISTANCE: C4
• SOUND PROOFING: 41 dB
